Rotary heat exchanger for heat recovery


Conforms to VDI 6022


Outdoor air and exhaust air connections

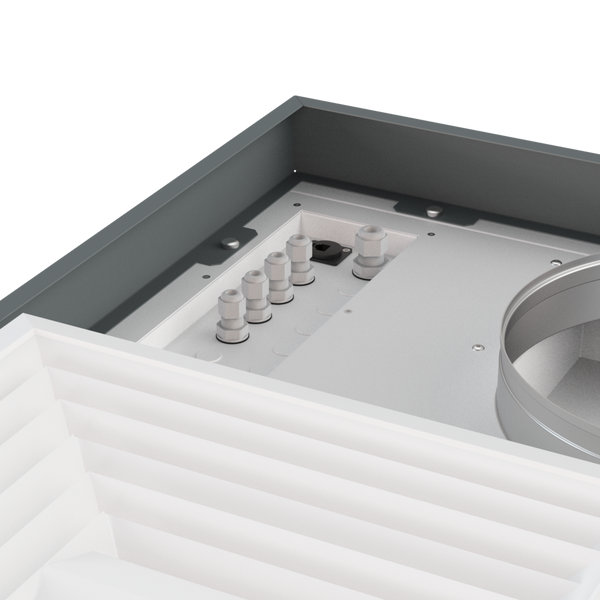

Electrical connections


Levelling foot and plinth


X-CUBE SCHOOLAIR-S-HV

Floor-standing supply air and extract air unit with rotary heat recovery unit and electric air heater

Ready-to-operate decentralised ventilation unit that provides good comfort levels and
is used for the ventilation of internal spaces such as classrooms or conference rooms
■ Acoustically optimised EC fans with low specific fan power, SFP = 0 to EN 16798-3
■ Rotary heat recovery unit (80% heat recovery efficiency) with moisture recovery in winter
■ Electric air heater with 3000 W max. heating capacity
■ Heat recovery all year round
■ Reduced fine dust and pollen contamination due to integral filters that conform to VDI 6022 – filter class ISO ePM1 60% and extract air ISO coarse 90%
■ Doors can be opened with an SW 10 Allen key, key holes are covered to prevent manipulation
■ Easy filter change, no tools required
■ Motorised shut-off dampers, normally closed (NC)
■ Optimised dimensions allow for integration with existing furniture
■ Installation without interruption of school operations

Optional equipment and accessories
■ Modular control system FSL-CONTROL III, specially for decentralised
ventilation systems
Product successfully added to cart

informations générales

Fonctionnement

Les unités décentralisées de soufflage et d'extraction d'air ventilent et extraient la pièce et couvrent les pertes de chaleur dues à la ventilation, comme un dispositif isotherme, conformément aux spécifications techniques.

L'air extérieur est aspiré par un ventilateur radial EC et traverse le registre d'arrêt motorisé et le filtre à air extérieur.

L'air extérieur traverse ensuite le récupérateur de chaleur rotatif, qui peut être désactivé en cas de fonctionnement écoénergétique.

Avant de pénétrer dans la pièce avec une forte impulsion vers le plafond, l'air soufflé est réchauffé dans l'échangeur de chaleur si nécessaire.

L'air extrait traverse le filtre à air extrait avant d'être expulsé vers l'extérieur par le récupérateur de chaleur, le ventilateur d'extraction et le registre d'arrêt motorisé.

Pour la protection incendie, la protection antigel et la prévention des courants d'air, les registres d'air extérieur et d'air extrait sont fermés en cas de panne de courant. Les servomoteurs sont équipés d'un accumulateur d'énergie.

L'air soufflé pénètre dans la pièce à vitesse moyenne près du plafond, et la sortie d'air sélectionnée assure un flux d'air uniforme dans toute la pièce.

Après avoir atteint le mur opposé à la sortie d'air, un rouleau d'air ambiant se forme. L'air soufflé atteint la zone occupée avec une vitesse très faible.

Technical information

  • FUNCTION
  • TECHNICAL DATA
  • ORDER CODE

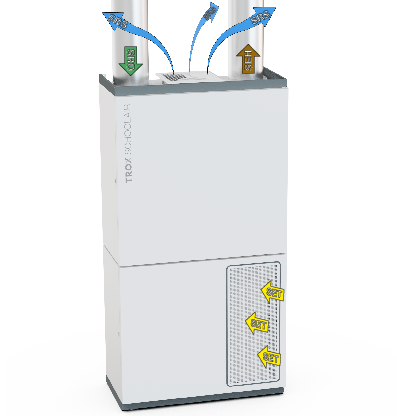

SEH Single room exhaust air
SET Single room extract air
SRO Single room outdoor air
SRS Single room supply air

1 Outdoor air temperature sensor (optional)
2 Shut-off damper with actuator (outdoor air and exhaust air)
3 Outdoor air filter ISO ePM1
4 Sound attenuator
5 Rotary heat exchanger for heat recovery
6 Fans (supply air and extract air)
7 Electric air heater
8 Supply air temperature sensor
9 CO2 sensor (optional)
10 Extract air filter ISO coarse


Function

Decentralised supply and extract air units for room ventilation, isothermal units that compensate for the heat loss due to ventilation according to the technical data. An EC centrifugal fan takes in the outdoor air which then flows through the motorised shut-off damper and the outdoor air filter. The outdoor air then flows through the rotary heat recovery unit, which can be switched off in energy efficient operating situations. If necessary, the air is heated by the heat exchanger before it is discharged towards the ceiling with a high propulsive force. The extract air first passes through the extract air filter, then flows through the heat recovery unit, the extract air fan and the motorised shut-off damper before it is discharged to the outside as exhaust air. In case of a power failure, the outdoor air and exhaust air dampers are closed to ensure fire protection, frost protection and to avoid draughts. This is ensured by a capacitor in each actuator. The supply air is discharged near the ceiling with a medium velocity, and the selected air outlet ensures good overall room ventilation. Once the air reaches the opposite wall, it moves downwards and eventually through the entire space. By the time the airflow reaches the occupied zone it has a very low velocity.

Width

1200 mm

Height

2300 mm

Depth

600 mm

Volume flow rate

300, 500, 800 m³/h (boost 1050 m³/h)

Nominal volume flow rate

800 m³/h

Sound pressure level at nominal volume flow rate and 8 dB

Room attenuation

35 dB(A)

Sound power level

24 – 53 dB(A)

Degree of heat recovery efficiency

80 %

Supply voltage

230 V AC ±10 %, 50/60 Hz

Connected load (depending on the electric heating coil

1200/1800/2400/3000 W)

1840/2440/3040/3640 VA

Weight

360 kg

SA-S–HV––EH–30–/1200 × 2300 × 600/0–0/C3–MA–T/MR/C/Z/A
| | |||| ||||||||||
1 2 3456 78910111213141516
1 Type
SA-S free-standing decentralised ventilation unit X-CUBE/SCHOOLAIR-S

2 Variant
HV High volume flow rate and rotary heat exchanger for heat recovery

3 Heat recovery
No entry: Standard

4 Heat exchanger
EH with electric air heater

5 Heat recovery construction
12 1200 W
18 1800 W
24 2400 W
30 3000 W

6 Construction
No entry: Standard

7 Nominal size [mm]
Width × height × depth
1200 × 2300 × 600

8 Surface – casing
0 RAL 9010 (pure white), GU 30
P1 RAL 7012 (basalt grey), GU 30 or alternatively RAL-CLASSIC at choice, GU 30

9 Surface plinth and matching rear frame (top)
0 RAL 7012 (basalt grey), GU 30
P2 RAL 9010 (pure white), GU 30 or alternatively any other RAL CLASSIC colour, GU 30

10 Control system
OR without control system
C3 with FSL-CONTROL III

11 Control function
MA Master
SL Slave

12 Real time clock
Only with control function MA
No entry: without real time clock
T with real time clock

13 Interface
No entry: without interface
MT with Modbus TCP
MR with Modbus RTU (only with control function MA)
BI with BACnet IP
BM with BACnet MS/TP (only with control function MA)

14 Air quality sensor
Only with control function MA
No entry: without air quality sensor
C with CO2 sensor
V with VOC sensor

15 Supply air temperature sensor
Z with supply air temperature sensor

16 Outdoor air temperature sensor
Only with control function MA
No entry: without outdoor air temperature sensor
A with outdoor air temperature sensor


Order example: SA-S-HV-EH-30/1200×2300×600/0-0/C3-MA-T/MR/C/Z/A

TypeSA-Sfree-standing decentralised ventilation unit X-CUBE/SCHOOLAIR-S
VariantHVHigh volume flow rate and rotary heat recovery unit
Heat recovery system-Standard
Heat exchangerEHwith electric air heater
Heat exchanger construction303000 W
Construction-Standard
Nominal size [mm]1200×2300×600Width 1200, height 2300, depth 600
Surface casing0RAL 9010 (pure white), GU 30
Surface plinth and matching rear frame (top)0RAL 7012 (basalt grey), GU 30
ControlC3with FSL-CONTROL III
Control functionMAMaster
Real time clockTwith real time clock
InterfaceMRwith Modbus RTU
Air quality sensorCwith CO2 sensor
Supply air temperature sensorZwith supply air temperature sensor
Outdoor air temperature sensorAwith outdoor air temperature sensor
