Easy controller, Compact controller
For all upstream conditions
Conforms to VDI 6022

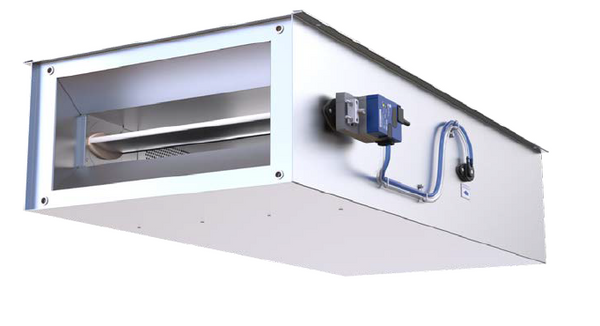

1 Integrated attenuator
2 Measuring probe
3 Control components, e.g. Easy controller
4 Damper blade with seal
The VAV terminal unit is fitted with a differential pressure sensor for measuring the volume flow rate.
The control components (attachments) include a differential pressure transducer that transforms the differential pressure into an electric signal, a controller, and an actuator; the control functions can be achieved with an Easy controller, with a Compact controller, or with individual components (Universal).
For most applications, the setpoint comes from a room temperature controller.
The controller compares the actual value with the setpoint and alters the control signal of the actuator if there is a difference between the two values.
An integral attenuator reduces the noise that is created by the restriction of the airflow.An integral attenuator reduces the noise that is created by the restriction of the airflow.
Nominal sizes | 125 – 315 |
Volume flow rate range | 27 – 1093 l/s or 95 – 3937 m³/h |
Volume flow rate control range (unit with dynamic differential pressure measurement) | Approx. 10 – 100 % of the nominal volume flow rate |
Minimum differential pressure | Up to 109 Pa (without secondary silencer) |
Maximum differential pressure | 1000 Pa |
Operating temperature | 10 to 50 °C |
Air-regenerated noise
Case-radiated noise
| TA-Silenzio | – | D | / | 200 | / | Easy |
| | | | | | | | | |||
| 1 | 2 | 3 | 4 |
1 Type
TA-Silenzio VAV terminal unit, extract air
2 Acoustic cladding
No entry: none
D with acoustic cladding
3 Nominal size [mm]
125, 160, 200, 250, 315
4 Attachments (control component)
Easy Volume flow controller, dynamic, analogue interface, setting of qᵥmin and qᵥmax with potentiometers (provided by the customer)
Order example: TA–Silenzio/125/Easy
| Acoustic cladding | none |
| Nominal size | 125 |
| Attachments (control component) | Easy volume flow controller, dynamic, setting qᵥmin and qᵥmax with potentiometers (provided by the customer) |
